Product Description
Description
1st Stage
- Lightweight, sturdy and compact
- INT – DIN connection
- Piston control
- Dedicated place for RFID chip

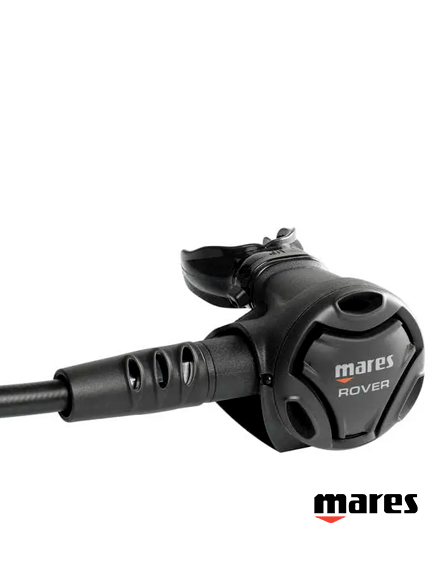

2nd Stage
- Vad system with fluid dynamic deflector
- Mid-size
- Mesh grid
- Rubber hose
- Oversized purge button
Facts
Code: | 416220 |
Material: | Techno Polymer |
First stage: | Piston |
Lightweight yoke: | Yes |
HP Ports: | 1 HP 7/16″ UNF ports |
LP Ports: | 4 LP 3/8″ UNF ports |
Technical Specifications
INT | DIN | NX | |
First Stage Weight: | 772g | 598g | |
Second stage weight (g): | 200g | 200g | 200g |
Total Weight (including hose): | 1110g | 936g |
Technologies
-
ACT Valve – Advanced Coating TechnologyAdvanced Coating Technology
The new valve in the “X” systems increases durability by an astounding 600%, even under the most extreme conditions.
-
Mesh GridPatented design which reduces the impact of water flow onto the second stage diaphragm, thus eliminating free flows even in strong currents.
-
VAD – Vortex Assisted DesignThe air bypass tube delivers air to the mouthpiece creating a swirling vortex with a low pressure area in the center that keeps the diaphragm down during inhalation, for very sensitive and easy breathing at all depths.
-
DFC – Dynamic Flow ControlMinimizes intermediate pressure drop during inhalation thus maximizing gas delivery, especially under extreme conditions.
-
Fluid Dynamic DeflectorReceives and properly directs the airflow from the bypass tube to the mouthpiece.
